Filters

Standard Mesh Grease Filters

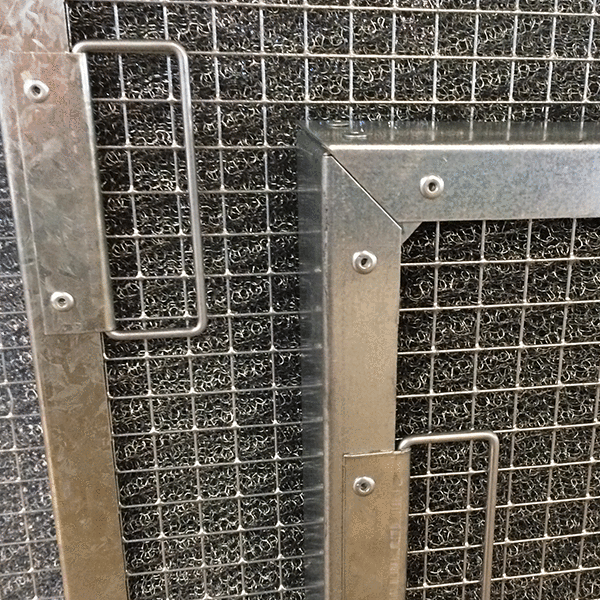

The grease filtration media is a crimped galvanised knitted wire mesh, that is enclosed in either an aluminium or galvanised channel frame. Galvanised steel retaining meshes are fitted to both faces of the grease filter, and corner plates provide rigidity.

Handles are normally desirable on grease filters for ease of removal and cleaning, but these are optional. Drain holes also provide an outlet for grease to drain away from the filter into drain trays and grease traps.

  • Quality Mesh Grease Filters manufactured from Galvanised Steel for Kitchen Canopies

  • Manufactured in the UK

  • Effective Grease removal from commercial kitchens

  • Cleanable and Long Lasting Grease Filter

  • Galvanised Steel Frames as Standard

  • Aluminium Frames available upon request

  • Handles and Grease Drain Holes included

  • Heavy Duty Filtration Options Available

Mesh Grease Filters are generally installed in the kitchen canopy above cooking ranges, fryers, and gas hobs in commercial restaurant kitchens. These air filters effectively eliminate or greatly reduce grease build up in duct work and on fans in the kitchen extract system.

Mesh Canopy Filters significantly reduce the frequency of expensive duct cleaning, and offer some protection against grease-fire hazards.

Sizes Available

Size in Inches.    Size in MM         Air Flow M3/S

10 x 10 x 2.     242 x 242 x 47    0.15

12 x 12 x 2.     292 x 292 x 47.   0.21

15 x 15 x 2.     369 x 369 x 47.   0.34

16 x 16 x 2.     394 x 394 x 47.   0.39

18 x 9 x 2.       445 x 216 x 47.   0.24

18 x 18 x 2.     445 x 445 x 47.   0.5

20 x 10 x 2.     495 x 242 x 47.   0.3

20 x 16 x 2.     495 x 394 x 47.   0.49

20 x 20 x 2.     495 x 495 x 47.   0.61

25 x 16 x 2.     623 x 394 x 47.   0.61

25 x 20 x 2.     623 x 495 x 47.   0.77

24 x 24 x 2.     597 x 597 x 47.   0.89

10 x 10 x 1.     242 x 242 x 22.   0.15

12 x 12 x 1.     292 x 292 x 22    0.21

15 x 15 x 1.     369 x 369 x 22.   0.34

16 x 16 x 1.     394 x 394 x 22.   0.39

18 x 9 x 1.       445 x 216 x 22.   0.24

18 x 18 x 1.     445 x 445 x 22.   0.5

20 x 10 x 1.     495 x 242 x 22    0.3

20 x 16 x 1.     495 x 394 x 22.   0.49

20 x 20 x 1.     495 x 495 x 22.   0.61

25 x 16 x 1.     623 x 394 x 22.   0.61

25 x 20 x 1.     623 x 495 x 22.   0.77

24 x 24 x 1.     597 x 597 x 22.   0.89

  • Bespoke sizes available

  • Handles & drain holes included


Other Available Filters
