Filters

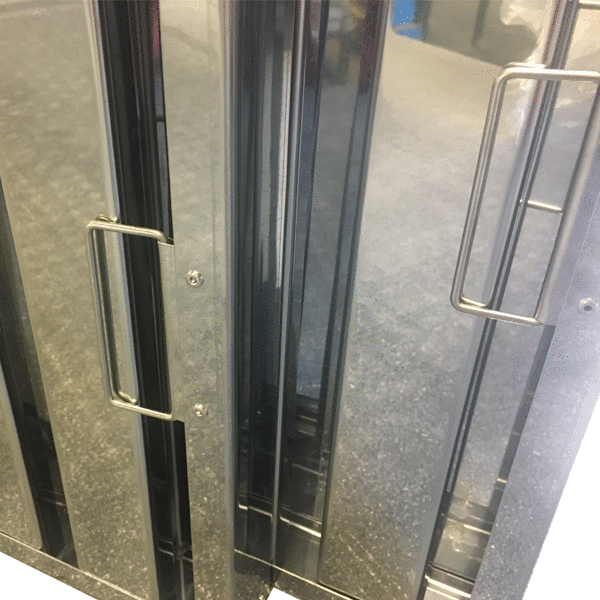

Stainless Steel Baffle Filters


The EcoFilter Baffle Type Grease Filter is designed for use in commercial kitchens to remove airborne grease prior to entering the extraction system.

It is recognised that there is an increasing need to maintain and improve hygiene standards in kitchens and to reduce the fire hazards above the heat source.Baffle Type Grease Filters reduces fire hazards with their unique design concept of non-grease loading (negligible grease accumulation), and interlocking baffle walls which restrict the passage of flames into the ductwork.

The Baffle Type Grease Filter’s smooth surface enables deposited grease to run off via the drainage holes, to grease collecting trays in the canopy or grease filter housing, where it can be easily disposed of. Efficient grease removal by Baffle Type Grease Filters minimises grease build-up in the kitchen extract ductwork system, and ensures that duct cleaning requirements are kept to a minimum.

  • Baffle Grease Filters for Commercial Kitchen Canopies

  • Manufactured in the UK Factory

  • Effective Kitchen Grease Removal

  • Grease Drain Holes

  • Fold Flat Baffle Grease Filter Handles

  • Easy Clean Surfaces

  • Stylish Brushed or Mirror Finish

  • Full 180 Degree Baffle Filter Blades offering fire protection


Housed in a channel framework, a series of vertical air baffles are strategically aligned to change the direction of the grease-laden air. This action causes the deposition of the grease quickly, without re-entrainment onto the baffles, whilst the grease-free air passes through the filter. The Baffle Type Grease Filter’s smooth surface enables deposited grease to run off via the drainage holes into collecting trays within the housing, minimising grease build-up.

Baffle type Grease Filters each have layflat handles to facilitate easy removal from the kitchen canopy or grease filter housing.

Sizes Available

Size in Inches.    Size in MM         Air Flow M3/S

16 x 16 x 2.     394 x 394 x 47.  0.25

20 x 10 x 2.     495 x 242 x 47.  0.19

20 x 16 x 2.     495 x 394 x 47.  0.31

20 x 20 x 2.     495 x 495 x 47.  0.39

18 x 18 x 2.     445 x 445 x 47.  0.31

24 x 24 x 2.     597 x 597 x 47.  0.54

  • Bespoke sizes available
